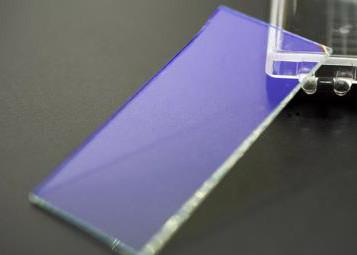

MIL-STD 350nm - 900nm Center Wavelength Short Pass Optical Filter

An optical filter is a device that selectively transmits light of different wavelengths, usually implemented as a glass plane or plastic device in the optical path, which are either dyed in the bulk or have interference coatings. The optical properties of filters are completely described by their frequency response, which specifies how the magnitude and phase of each frequency component of an incoming signal is modified by the filter.

Short pass filters are specifically designed to transmit wavelengths shorter than the cut-off wavelength while rejecting longer wavelengths. Because short pass filters isolate specific wavelengths, short pass filters are desirable in systems where they can be used to trim excess wavelengths or stray light to reduce unwanted near band emissions. Industry applications include order sorting in photometry and fluorescence.

As an important optical element, HTOE specially manufactured short pass filters are widely used in digital imaging, biomedical cosmetology and fingerprint recognition. They are made to let light in one certain band pass through while cut off light in the other band. HTOE long pass and short pass filters are characterized by high throughput rate, wide cut-off band and excellent film firmness. Filter products are manufactured according to customer's requirements.

TECH Supports

• Simulation spectrum
• Sample supply
• Material test
• Trial order
• Customize
• 24H service aftersale

Applications

• CCTV & Surveillance system
• Industrial camera system
• Digital cameras

Specifications

Spectral Curve

Hi-Tech Optoelectronics Co., Ltd. is a wholly-owned subsidiary of CECEP, is a high-tech enterprise established on the basis of National Optoelectronic Engineering Research Center.

• Established in 1999
• Registered Capital：227 million RMB
• Located in Shahe Industrial Park, Beijing
• Employees：~180
• Products: Semiconductor Lasers

Headquarter in Beijing：

• Over 3000m² of manufacturing space, and more than 1500m² clean room with class 1,000 and 10,000 ；
• The new factory planned with 11,000m², and under construction now.

R&D Platform

• National Optoelectronic Engineering Research Center
• Post-doctoral Research Center
• Engineering Technology Research Institute Optoelectronics Branch of China Energy Conservation Group

More than 30 core patents：

• Ep-Wafer Structure Design
• COMD control
• Electrode process
• Chip process
• Chip packaging
• Beam shaping
• Fiber coupling

Leading provider of laser diodes and laser-based solutions in China.
