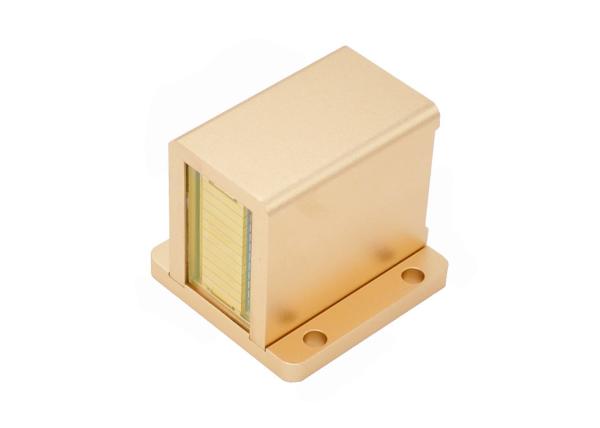

500 watt High Power Laser Diode Array, 808 nm Vertical Array for Hair Removal

Laser hair removal is the process of hair removal by means of exposure to pulses of laser light that destroy the hair follicle. HTOE LDAQ2-0808-0500 vertical array is specially designed for hair removal application, it can stack up to 10 packaged laser bars to form a high power diode laser assembly. Each of these laser bars individually provides up to 100watts in CW mode. The small gaps between the laser bars make the module obtain maximum brilliance from the arrays, enabling the module to work with high efficiency.

Features

• Power up to 500W
• 808nm center wavelength
• Compact design
• Reliable package with hard solder
• Contact cooling method
• 20 years' experience in laser diode production
• 13 months warranty period

Principle

The primary principle behind laser hair removal is selective photothermolysis (SPTL), the matching of a specific wavelength of light and pulse duration to obtain optimal effect on a targeted tissue with minimal effect on surrounding tissue. Lasers can cause localized damage by selectively heating dark target matter, melanin, thereby heating up the basal stem cells in the follicle which causes hair growth, the follicle, while not heating the rest of the skin.

Specifications(20℃)

Package Information

Function Curve

500W Array

Notice

1. Item model notice: LDAQ2 (item model) - 0808 (center wavelength)-0500 (output power).

2. Please install and operate this laser diode by professionals, or at least under professional guidance.

3. Package data is only for reference, which can be customized according to clients’ designed drawings.
4. Please make sure laser diode is operated under the temperature between 15℃ and 35℃, as high temperature will increase threshold current, decrease exchange rate and accelerate the aging.
5. Output power could be customized by customers’ requirements.
6. Please take measures to avoid condensation, which will cause aging of laser diode.
7. For more information, please contact Hi-Tech Optoelectronics Co., Ltd.
