C Mount Package Laser Diode for Pumping, 980 nm Single Emitter Diode Laser

HTOE LDM series packaged single emitters are Fabry-Perot cavity semiconductor lasers based on Quantum-well epitaxy and ridge waveguide structure design. Standard options are 635nm, 650nm, 670nm, 785nm, 808nm, 830nm, 915nm, 940nm, 980nm and 1064 nm center wavelength single emitters packaged on TO mounts, CoS mounts, C-mounts and F-mounts. HTOE packaged single emitter diodes provide superior reliability and performance by providing beam shaping services like fast-axis compression according to customer demands

.

LDM-0980-002W-*4 packaged single emitter diode is one of HTOE's standard laser diodes. HTOE provide two package options for customers, C-mount package and chip on submount package according to specific demands. LDM-0980-002W-*4 packaged single emitter diode laser is developed for pumping and direct-diode applications.

Features

• 980nm center wavelength
• 2 watt output power
• Package on C-mounts or chip on submount (CoS)
• High reliability and performance

Parameters(20℃)

Package Information

C-Mount Package

CoS Package

Function Curve

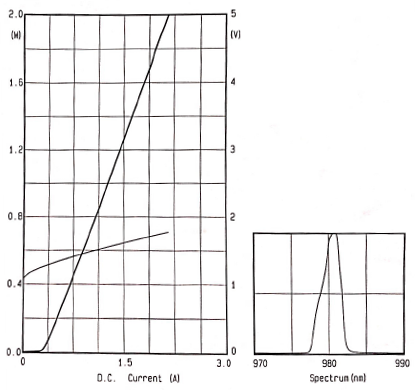

P-I-V Curve Spectral Curve

Notice

1. ESD precautions must be taken when handling unit.

2. Item model notice: LDM (Item model)- 0980 (Center wavelength)- 002W (Output power), *4 (Heat sink structure and item width).
3. Data in the sheet are all based on C-mount package heat sink testing.

4. A dry environment should be provided when storing or operating a device with an open diode laser facet at temperatures below the ambient dew point. Failure to do so will cause condensation on the unit and can destroy it.

5. For more information, please contact Hi-Tech Optoelectronics Co., Ltd.
