Medical 8W output power F-Mount C-Mount CoS Packaged Single Emitter Diode Laser

HTOE LDM-0808-008W-*5 is a standard high-quality packaged single emitter which is Fabry-Perot laser based on state-of-the-art, quantum-well epitaxial layer growth and reliable ridge waveguide structure. LDM-0808-008W-*5 is easy to mount and provides good thermal contact, making it an ideal choice for high power and OEM applications.

LDM-0808-008W-*5 belongs to HTOE's LDM series, which based on Quantum-well epitaxy and ridge waveguide structure design. HTOE packaged single emitters provide excellent reliability and performance. Center wavelength includes 635nm, 650nm, 670nm, 785nm, 808nm, 830nm, 9xxnm and 1064 nm. Package designs include TO mounts, CoS mounts, C-mounts and F-mounts. Provide beam shaping services like fast-axis compression according to customer demands.

Features

• 8 watt output power
• 808nm center wavelength
• Multiple package designs include CoS mounts, C-mounts and F-mounts
• High electro-optical effiency
• High reliablity

Applications

• Laser pumping
• Medical
• Illumination
• Material processing

Parameters (20℃)

CoS Package

F-Mount

C-Mount

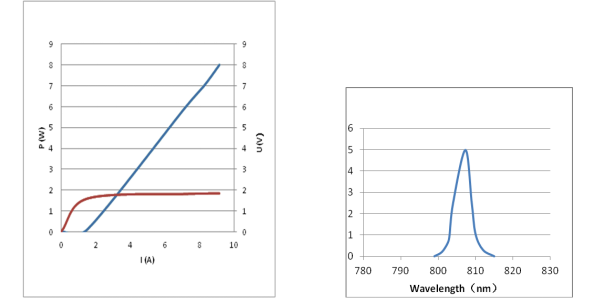

Function Curve

P-I-V Curve Spectral Curve

Notice

1. ESD precautions must be taken when handling unit.

2. Item model notice: LDM (Item model), 0808 (Center wavelength), 008W (Output power), *5 (Heat sink structure and item width).
3. Data in the sheet are all based on CoS package testing.

4. Please store or use the LD under dry and air flow ambient.To avoid any situation of condensation which will damage the LD.

5. Working under high temperature will increase the threshold current and decrease the efficiency conversion,speed up the aging of the LD.

6. The exceed power output will speed up the aging of the LD.

7. To use the LD with enough head dispensing or under the cooling ambient.

8. For more information, please contact Hi-Tech Optoelectronics Co., Ltd.
