| Brand Name : | HTOE |
| Model Number : | LDAQ2-0940-200W |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000 pcs per month |
| Delivery Time : | 10-20 working days |
940 nm Conduction - cooled Packaged Vertical Array , 200 watt High Power Laser Diode
LDA series high power packaged bars provide OEM customers with scalable power up to kilowatts for pumping, industrial, medical and applications. The packaged laser bars can be configured for enhanced brightness through stacking, scaled linearly or vertically for optimized light and material integration. LDA series offer
Parameters(20℃)
| Conduction-cooled Vertical Arrays | |||
| Parameter | Unit | LDAQ2-0940-200W | |
| Optical Parameter | Operation Mode | - | QCW |
| Center Wavelength | nm | 940 | |
| Output Power/Bar | W | 200 | |
| Bar Qty. | - | 5/10/20 | |
| Spectral Width | nm | <5 | |
| Wavelength& Temperature Ratio | nm/℃ | 0.28 | |
| Pulse Width | μs | <500 | |
| Duty Ratio | % | ≤ 4 | |
| Fast Axis Divergence | deg | <39 | |
| Slow Axis Divergence | deg | <10 | |
| Electrical Parameter | Threshold Current | A | <30 |
| Operating Current | A | <200 | |
| Operating Voltage/Bar | V | <2.0 | |
| Thermal Parameter | Operating Temp. | ℃ | 15 ~ 35 |
| Storage Temp. | ℃ | -10 ~ 60 | |

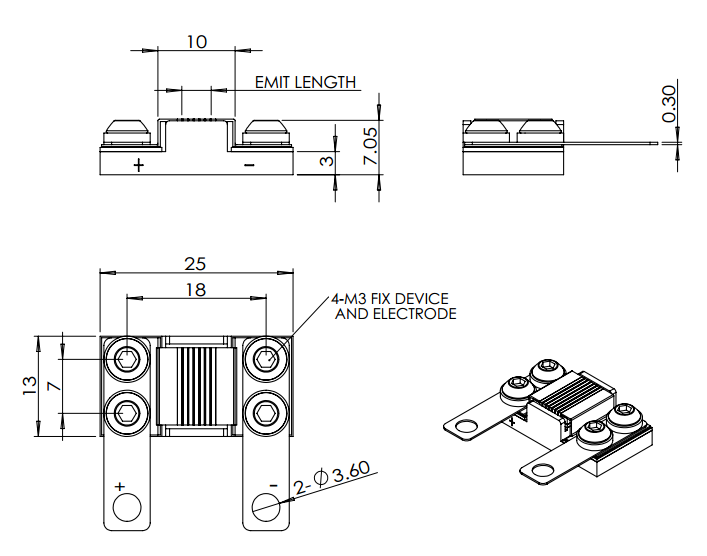

Package Information
Notice
1. Item model notice: LDAQ2 (item model)-0940(center wavelength)-200W (output power).
2. Package data is only for reference, which can be customized according to client’s designed drawings.
3. Please make sure laser diode is operated under the temperature between 15℃ and 35℃, as high temperature will increase threshold current, decrease exchange rate and accelerate the aging.
4. Please take measures to avoid condensation, which will cause aging of laser diode.
5. For more information, please contact Hi-Tech Optoelectronics Co., Ltd.
|
|
