808nm wavelength, 500mW output power TO-9 Package Laser Diode with PD​

HTOE's LDMA-0808-500m-82 is a TO-9 packaged laser diode with photodiode (PD). The laser emits 500mW optical power with CW mode at 808nm wavelength. LDMA-0808-500m-82 is sealed by standard TO-9 package with a flat window. The internal PD can make user to integrate more functions in their systems more easily. Featured and benefited a high reliable operating and a narrow emitting width 50µm, LDMA-0808-500m-82 allows to operate with a high quality laser beam, It's ideal for pumping Nd:YAG and illumination applications.

LDMA-0808-500m-82 belongs to HTOE's LDM series, which based on Quantum-well epitaxy and ridge waveguide structure design. HTOE packaged single emitters provide excellent reliability and performance. Center wavelength includes 635nm, 650nm, 670nm, 785nm, 808nm, 830nm, 9xxnm and 1064 nm. Package designs include TO mounts, CoS mounts, C-mounts and F-mounts. Provide beam shaping services like fast-axis compression according to customer demands.

Features

· 808nm center wavelength

· 500mW output power

· Integrate with Photodiode

· High electro-optical effiency

· High reliablity

· With standard TO-9 package

Applications

· Laser Pumping

· Medical

· Illumination

Parameters(25℃)

Package Information



TOØ9 Package

Function Curve

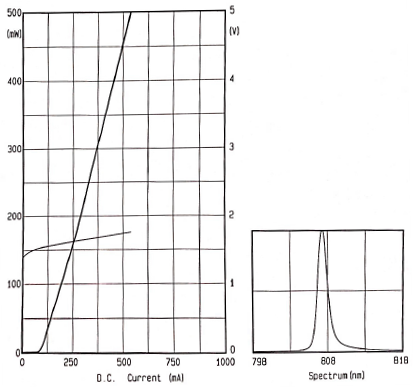

P-I-V Curve Spectral Curve

Notice

1. Item model notice: LDMA (Item model), **** (Center wavelength), **** (Output power), ** (Heat sink structure and item width).
2. Data in the sheet are all based on TOØ9 package testing.
3. For more information, please contact Hi-Tech Optoelectronics Co., Ltd.

ESD Cautions

The primary cause of diode failure is unexpected electrostatic discharge. To help prevent device failures, be sure to handle devices with extreme care. Users should always wear an ESD wrist strap, ground all applicable work surfaces and follow anti-static techniques when handling diode lasers.

Operating Considerations

Operating the diode laser outside of its maximum ratings may present a safety hazard or cause a device failure. Additionally, excessive drive current or switching transients can damage CW diode lasers. DO NOT exceed the maximum peak optical power. Before turning the power supply on, connect the component to the power supply and ensure the output voltage value is zero. After the component has been successfully connected, increase the current slowly and monitor both the output power and drive current. Device degradation accelerates with increased temperature; therefore, careful attention to minimizing the case temperature is advised. A proper heat-sink for the diode laser on a thermal radiator will greatly enhance laser life.
